Broad Casting Add Ons
Model: A-JRSP-01-SIP
SIP Broadcasting and Emergency Speaker
Industrial standard with extended functionality, designed for critical communications
The VoIP SIP all in one speaker, A-JRSP-SIP-01 is designed for broadcasting both indoor outdoor environments. A-JRSP-SIP-01 is a standalone fixed unit that is easy to install and can be placed almost anywhere, this supports a flexible and cost-effective approach to system design.
It allows users to:
To deliver clear and precise instructions during an emergency
Remotely warn off intruders
To make general voice announcements
To raise the alarm in an emergency
To deliver loud and clear messages within noisy environment
The SIP speaker supports playing prerecord audio files manually or automatically in response to an alarm event. The speaker can be supplied on demand with a dry contact relay for supporting door / gate opening, flashing strobes and other uses.
The open standards also support easy integration with network video, access control and VoIP (supporting SIP).
General features:
Max sound pressure level: >115dB
Amplifier description: Built-in 25W Class D amplifier
Provisioning & Management: Web Server for Configuration and Management, Configuration update via FTP, TFTP, HTTP, HTTPS, DHCP Options (66,67,160,12,60,77)
Casing Materials: Impact-resistant engineering plastic,
IP Water and Dust Ingress Rating: IP65-rated
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at
Connectors: (max.12.95W) RJ45 10 BASE-T/100 BASE-TX PoE
Dimensions: 280mm X 205mm X 280mm
Weight: 1.8KG Weight
Model: A-JRSP-01-Analogue
Loud Analogue Horn and Speaker
Supports connection to all J&R telephones and intercoms, including analogue, VoIP SIP or 4G/ GSM versions or from an amplifier output, for use as an extended loud ringer or a broadcasting solution
Providing a powerful solution >110dB@1m for noisy environments and made from durable impact-resistant engineering plastic, The A-JRSP-01 is dust and water ingress protection rated IP65. An ideal solution for mounting internally or externally to J&R technology phones or supporting communication systems with an amplifier output.
J&R technology phones are supplied (on request) with an amplifier output to support use of the horn as a loud ringer and / or broadcasting solution. Powered directly from the J&R Technology phone or from an independent amplifier with an audio cable pair for connection.
On request, J&R Technology telephones support a broadcasting feature through the loudspeaker, either locally or remotely on dial in. Please do not hesitate to speak to us further regarding your broadcasting requirements.
General Features:
IP-rating: IP55 / IP65
Input power: 35W
SPL(1W/M): 110dB
Dimensions: φ210 X206(L)mm
Colour: Grey
Impedance: 8ohm
Frequency response: 400-8000K Hz (-20dB)

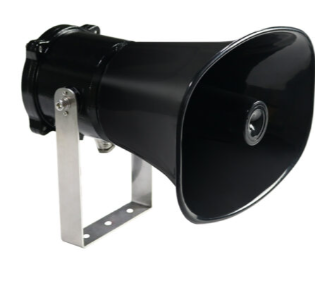

Model: A-JREX-SP-01-SIP
Explosion Proof Horn and Loudspeaker
IP66 rated ATEX Certified horn and loudspeaker meeting regulations in potentially explosive environments
Explosion Proof Marking: Ex db 11C T6 Gb
The A-JREX-SP-01-SIP explosion-proof horn and loudspeaker is IP66 weather and dust ingress rated, and certified to ATEX standards, having been formally certified by authorized testing agencies, thereby obtaining its explosion-proof certification. With a well-engineered structure, aesthetically pleasing design, powerful and high-quality sound output with high-fidelity audio and dependable performance, the speaker is easy to install both internally and externally.
The A-JREX-SP-01 Explosion-proof speakers are designed with high sound intensity, low noise, long transmission distance, durability, and excellent explosion-proof performance.
They are ideal for environments with explosive gases or dust such as; Oil & Gas Stations, Chemical Plants, Oil Depots, Drilling Platforms, Ordnance Factories, Medicine, Mining and other related industrial applications containing flammable and explosive gases within high noise environments.
The open standards also support easy integration with video networks, access control points and VoIP systems (supporting SIP).
General features:
Explosion Proof Marking: Ex db 11C T6 Gb
Max sound pressure level: >115dB
Amplifier description: Built-in 30W Class D amplifier
Provisioning & Management: Web Server for Configuration and Management, Configuration update via FTP, TFTP, HTTP, HTTPS, DHCP Options (66,67,160,12,60,77)
Casing Materials: Impact-resistant engineering plastic and stainless steel, grade SUS316
IP Water and Dust Ingress Rating: IP66-rated
Operating conditions: -40°C to 60°C
Humidity: 10-100%RH (condensing)
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at
Connectors: (max.12.95W) RJ45 10 BASE-T/100 BASE-TX PoE
Dimensions: 302mm X 280mm X 295mm

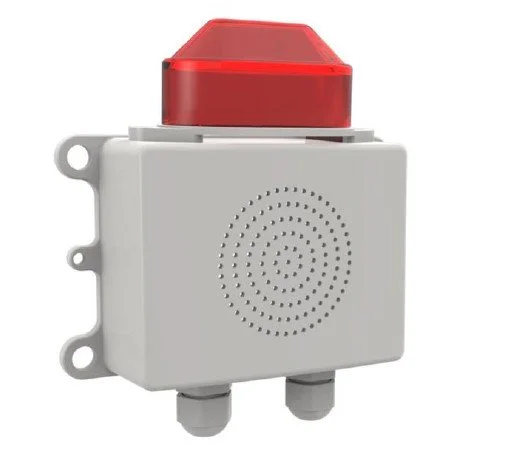

Model: A-JR-BS-01
IP65 rated loud ringer and flashing strobe for call signalling
A high-performance strobe and call sounder solution with a loud ringer (115dB@1m) and quick flashing poly carbonate lens, optionally supplied with lens colours: red. blue and or green. The A-JR-BS-01 connects directly to J&R Technology phones and intercoms when supplied with an amplifier (confirm on order) or to independent systems that support a ringer and beacon function.
With an IP65 water and dust ingress rating, the A-JR-BS-01 supports installation both inside and outside locations. The module is supplied with two gland entry input points to support audio pair and the strobe power pair connections.
General Features:
Application: Auto / Tunnel / Fire /EMS / Industrial Plant / Engineering
Power Supply: 12V / DC2Ah
Speaker: 8ohm10W
Sounder dB Value: MAX 115dB at a distance of 1m
LED lamp: 12V, 0.2Ah
Lens material: Poly-carbonate Lenses
Operating temperature: -35 to +60°C
Humidity: ≤95%
Ingress Protection: IP65
Net weight: 0.5kg
Dimension: 141 X 146mm
Install method: Surface mount
Unit package size: 145 X 150mm
Optional colours: Red , Blue, Green, Amber
