Dispatching Consoles
Railway / Underground Stations - Power stations - Mining Industry
The JR-DS dispatching consoles range, function the central control point within the dispatching system, playing a vital role in overall system operations. Through dedicated system software, operators can connect to the dispatch host to perform tasks such as forced call removal, call insertion, initiating calls, video conferencing, and various other dispatching functions

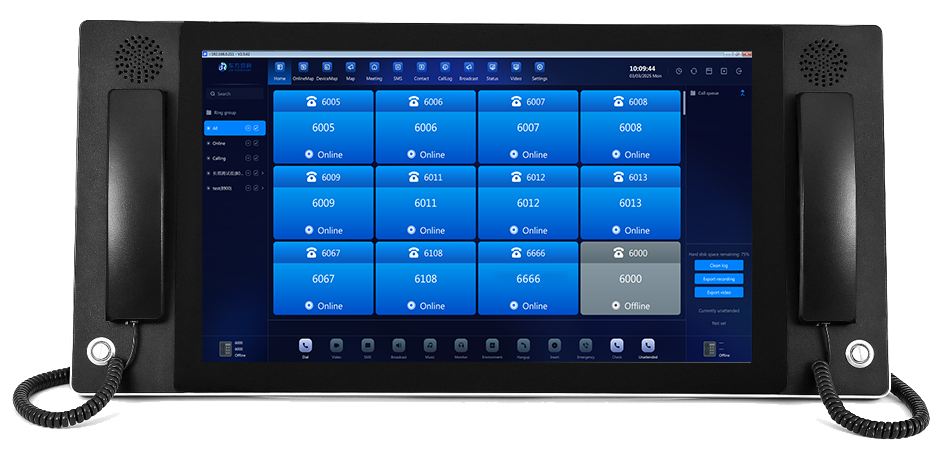

JR-DS-01
The JR-DS-01 dispatching console functions as the central control point within the dispatching system, playing a vital role in overall system operations. Through dedicated system software, operators can connect to the dispatch host to perform tasks such as forced call removal, call insertion, initiating calls, video conferencing, and various other dispatching functions.
This product is a high-performance embedded computer with an interactive touch screen interface
It features a modular design that supports the configuration of components such as a single handle, HD telephone handset, and microphone. The system can be customised and integrated into telephone and communication devices, offering user-friendly operation and efficient management capabilities
The dispatch console offers robust performance, reliable operation, and extensive application support, making it an excellent solution for enterprises and institutions involved in IT deployment and interactive display systems
2 built-in customized phones, command to query IP, one-click hands-free, support WEB management, Support MIC input
Screen size -17.3-inch LCD screen - wide viewing angle
Capacitive touch screen, USB interface
Power supply: external support DC 12V 10A power adapter

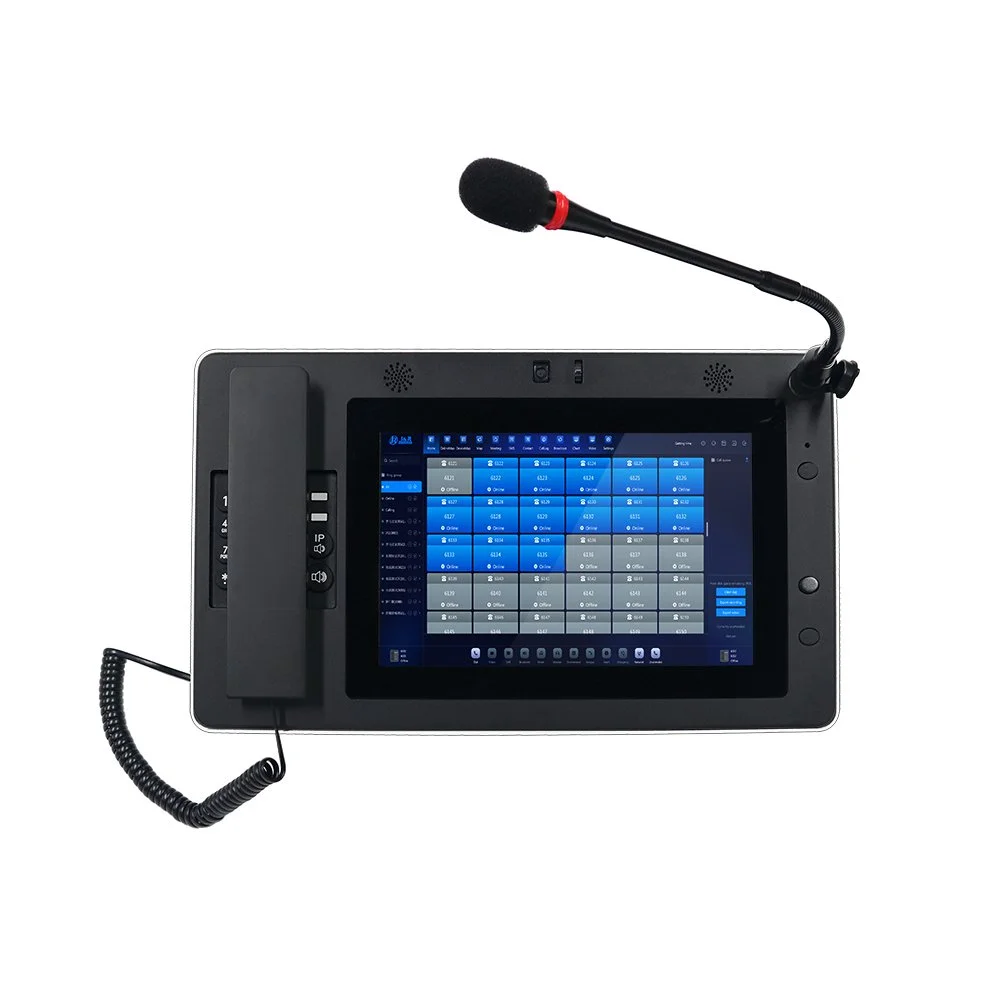

JR-DS-02
This product is a high-performance embedded computer with an interactive touch screen interface.
It features a modular design, supporting configurations such as a single handle, HD telephone handset, microphone, and more. It can be customized and integrated into communication and telephony systems, offering easy operation and management.
The dispatch console delivers strong performance, reliable stability, and broad application support, making it an excellent solution for enterprises and institutions focused on IT deployment and interactive displays.
Equipped with a single handle and high-definition telephone handset featuring integrated keypad controls. The SIP phone supports one-click broadcasting to IP or analog phone addresses and includes a gooseneck microphone for clear audio input.
Camera - Built-in 200W pixel
Screen size 10.1-inch capacitive touch screen

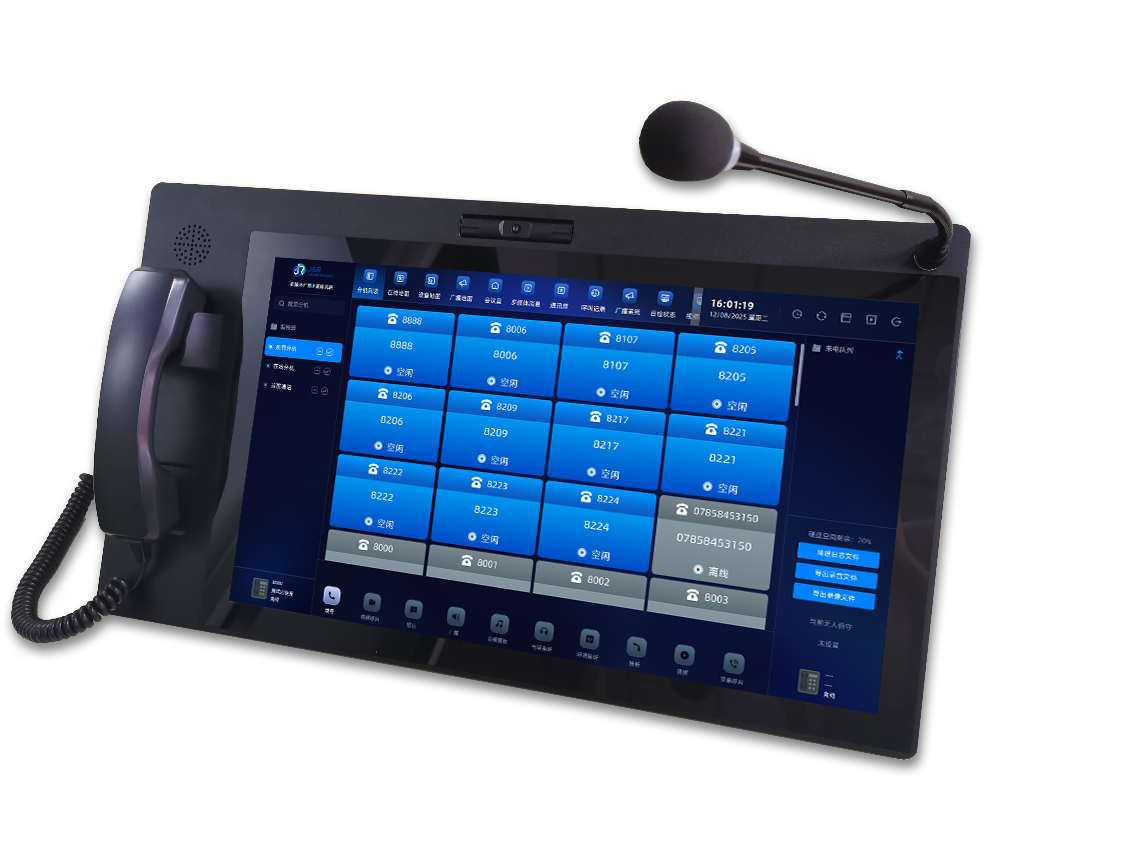

JR-DS-03
The JR-DS-03 is a next-generation multimedia dispatch terminal tailored for industries such as metro, railway, power, metallurgy, petroleum, coal, and mining.
Leveraging advanced WebRTC technology for smooth, reliable dialing, this device features an easy-to-install design with adjustable desktop mounting and a horizontal tilt range of 15 to 85 degrees.
Constructed from lightweight aluminum alloy, it includes an industrial-grade PCB, a 2-megapixel 1080P rotating camera, and built-in solid-state storage.
Despite its compact form, it integrates four USB ports, one HDMI port, one VGA port, a dedicated audio interface, a LAN port, and a DC power input.
Departing from conventional layouts, all I/O interfaces are positioned along the rear side panels, greatly improving ease of operation and simplifying maintenance for end-users.
Touch screen: 10 point capacitive touch screen
Screen size: 21.5 inches
Flexible call mode: two audio sources are input and output, and the neck microphone + speaker and earphone
can switch the sound flexibly, and the call is not interrupted when switching
